GDA-FR

Portable Detector for First Responders

Chemical

Threats

Radiological

Defense

GDA – First Response

GDA – First Response

Description

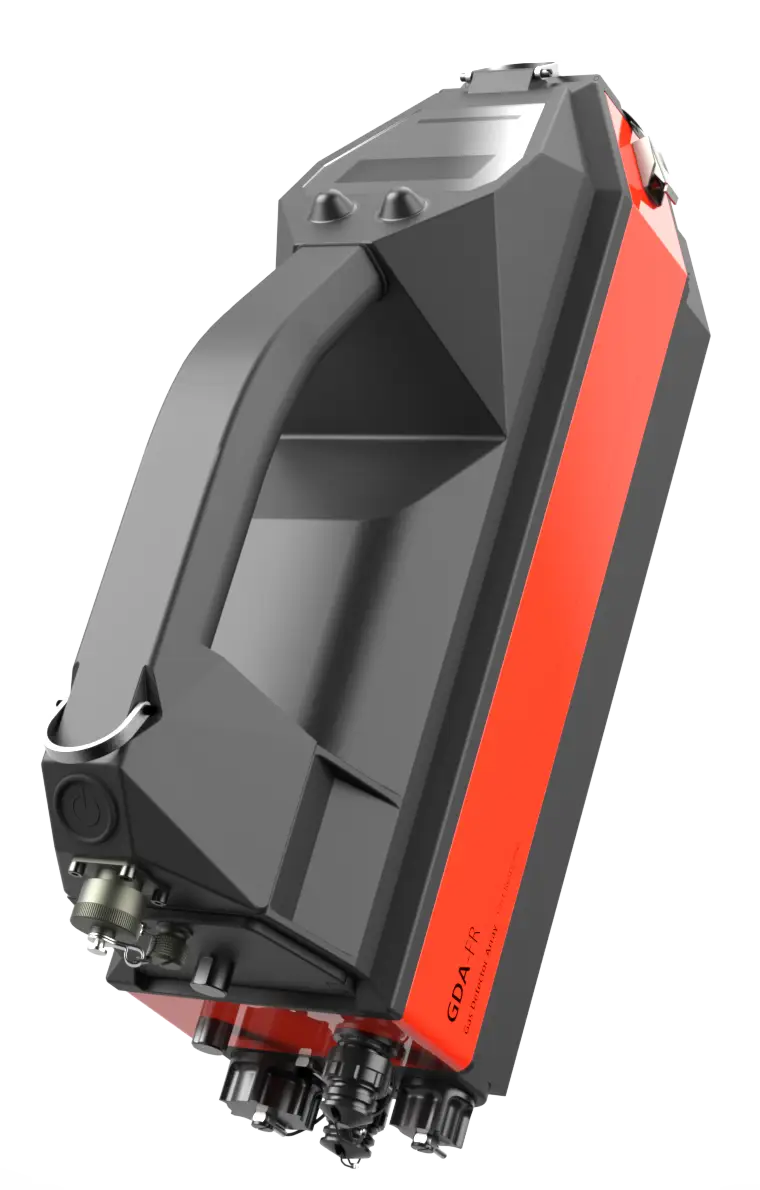

The GDA-FR (Gas Detector Array – First Response) is a portable chemical detector designed to identify a wide range of hazardous gases and vapors within seconds. Developed specifically for first responders, the GDA-FR combines multiple sensor technologies to provide rapid, reliable and accurate identification of Toxic Industrial Compounds (TICs) and Chemical Warfare Agents (CWAs) – even at low concentration levels (ppm to ppb).

Its hybrid sensor array includes Ion Mobility Spectrometry (IMS), Photoionization Detection (PID), Metal Oxide Sensors (MOS) and Electrochemical Cell (EC). This combination enhances selectivity and enables the detection of both known and unknown substances without requiring pre-selection of the target gas.

Thanks to intuitive operation, robust design and fast response time, the GDA-FR is ideally suited for emergency response, public event protection and industrial safety monitoring. The instrument is ready for use at any time and offers both standalone and PC-connected operation. Data can be stored and analyzed offline.

Proven in global deployments, the GDA-FR supports decision-making in critical situations, providing users with a high level of situational awareness and personal safety.

Application

Public Security

First Responders

Main FeaturesGDA – First Response

  • Unique hybrid sensor array: IMS, PID, EC, MOS
  •  Simultaneous detection and identification of hazardous gases in seconds
  • High sensitivity in ppm to ppb range
  • Integrated display with visual and audible alarms
  • Standalone operation or use with PC via WinMuster GDA software
  • Offline data storage and analysis
  • Optional modules:
    – Wireless LAN and GPS
    – Gamma radiation detection (Geiger counter)
Weight
4.3 kg
without batteries
Dimensions
L 395mm
W 112mm
H 210mm
Temperature
-10 to 45°C operating temperature
Power
battery operating time
up to 4hrs
Communication
Wireless Connectivity
RS232 or USB
GPS
Features
Gamma detection
Warranty
12 months
